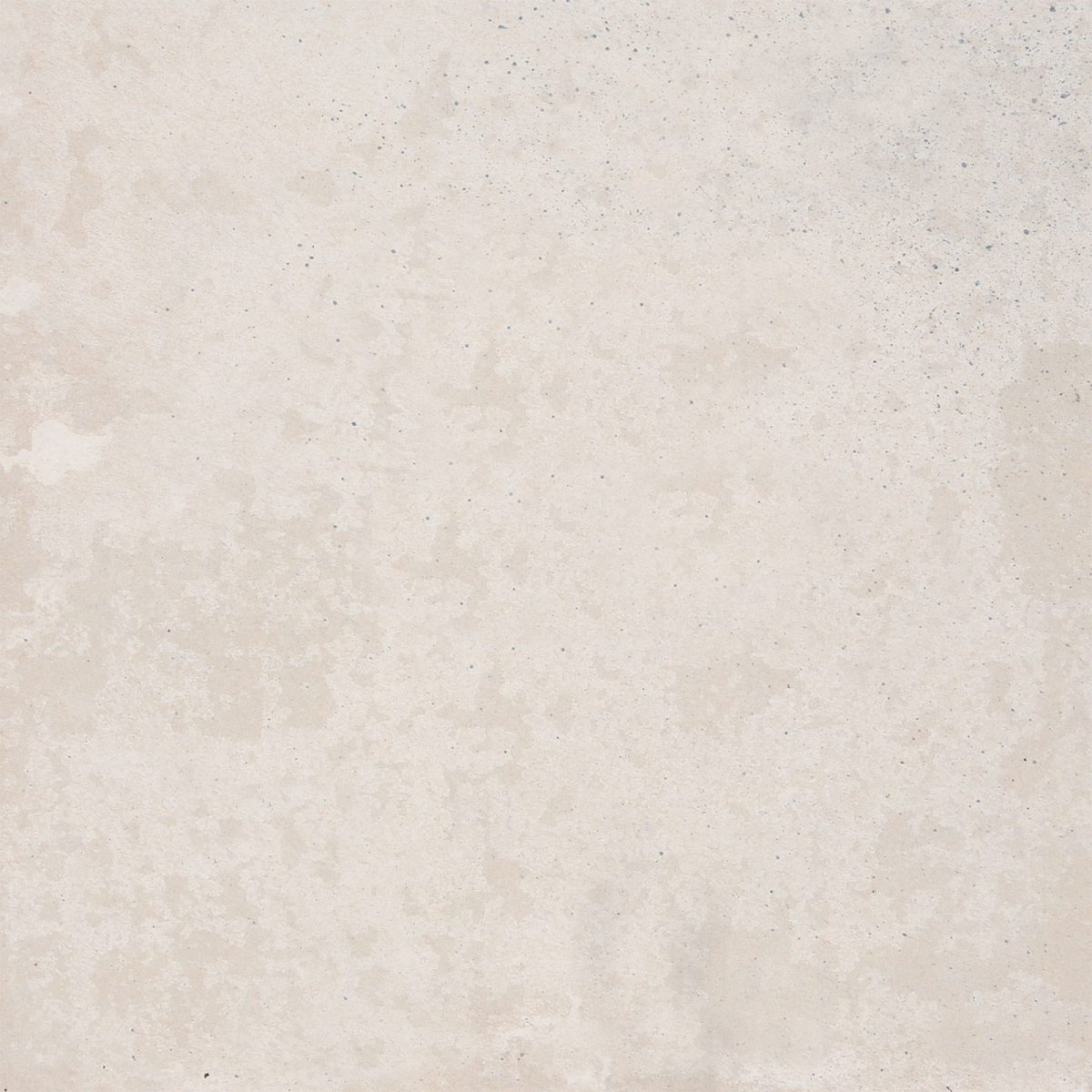

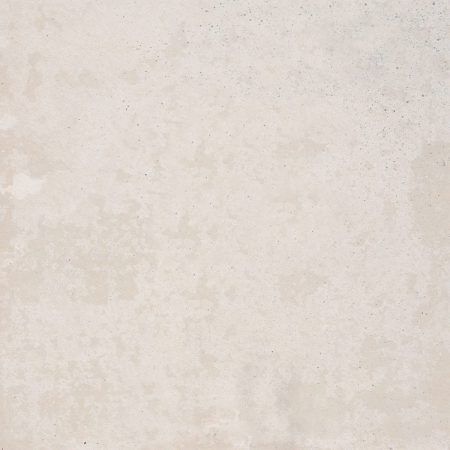

Ceramic Tile Underlay

Cemintel’s Ceramic Tile Underlay is for internal use and is an easily installed and cost effective way to form a flat substrate for laying ceramic tiles over existing floors.

It provides a thinner solution for tile substrate that minimises the impact on floor levels with surrounding areas. It is an effective option to use over tongue and groove hardwood floors when tiling over them.

Category: Flooring & Decking

Store availability: Cabramatta, Katoomba

Online Enquiry

Product Overview
Technical Specifications
Downloads

Features

For internal use
Easily installed
Cost effective way to form a flat substrate for laying ceramic tiles over existing floors
Thinner solution for tile substrate
Minimises impact on floor levels with surrounding areas
Effective option to use over tongue and groove hardwood floors when tiling over them

APPLICATIONS

	Result
Applications	Flooring
Type of Building Structure	Residential Housing Buildings, Commercial & Other
Wet Areas	Yes

PANEL – DIMENSIONAL & GEOMETRICAL CHARACTERISTICS

Dimensional/Geometrical Characteristic	Specification	Manufacturing Tolerance
Panel Width	900mm & 1200mm	+0 -4 mm
Panel Length	1800mm	+0 -5 mm
Panel Thickness	6mm	+0.5 -0 mm
Profile	Square Edge
Perpendicularity/squareness of edges	1.5mm/linear meter
Weight (typical)	9.4kg/m2
Layout Options	N/A
Jointing	Butt jointed, Sealant

PANEL – STRENGTH & MOISTURE RELATED PROPERTIES

Physical Property	Result	Relevant Standard
Modulus of Rupture (Wet)	> 7 MPa	AS2908.2
Modulus of Elasticity (Wet)	3-5 GPa
Density (Oven Dry) Min.	1300 kg/m3	AS2908.2
Water Vapor Diffusion	Not Required	Not Required
Water Tightness (24hrs)	No water droplet	AS2908.2
Water Absorption (Saturated – 48hrs)	30 wt%	ASTM C 1186
Moisture Content (EMC)	7 Wt %	ASTM C 1186
Moisture Movement (30-90% Relative Humidity)	0.05%	ASTM C 1186

PANEL – OTHER DURABILITY/WEATHER RESISTANCE INDICATORS

Test	Result	Relevant Standard
Heat Rain	PASSED (25 Cycles)	AS2908.2
Freeze Thaw	PASSED (50 Cycles)	AS2908.2
Warm Water Resistance	PASSED (56 days)	AS2908.2
Soak Dry	PASSED (25 Cycles)	AS2908.2

PANEL – FINISH CHARACTERISTICS

Characteristic	Result	Relevant Standard
Finish	N/A	N/A
Coating Type	Sealer: Polyacrylic	N/A
Colour Bodied	N/A	N/A
Paint Type	N/A	N/A
UV Resistance	N/A	N/A
Formaldehyde Emission Rate	N/A	N/A
VOC Emission Rate	N/A	N/A

Spectral Reflectivity Values	Solar Reflectance %	Solar Absorption %	Basix Colour	Relevant Standard
Ceramic Tile Underlay

PANEL – FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES

Characteristic	Result	Relevant Standard
FIRE RESISTANCE
Combustibility	Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2019 BCA Vol 1 Clause C1.9
Fire Hazard Properties	Group 1 Av Specific Extinction Area <250	AS 5637.1
Classification	N/A	AS/NZ 3837
Surface Burning Characteristics	Ignitability =0, Flame Propagation =0, Heat Release =0, Smoke Release=1	AS1530.3
THERMAL CONDUCTIVITY	N/A
Thermal Conductivity (λ-Factor)	≈ 0.2776 W/m.K.
Thermal Expansion Co-efficient	0.005-0.01mm/mK	N/A
ACOUSTIC VALUE
Sound reduction (depends on construction)	N/A	N/A

SYSTEM SOLUTIONS

Characteristic	Result	Relevant Standard
Within Scope of AS4055?	N/A	N/A
Wind Loading – Residential housing buildings within the scope of AS4055	N/A	N/A
Weatherproofing	N/A	N/A
Cyclonic Conditions	N/A	N/A
Fire Resistance Limits (FRLs)	N/A	N/A
Bushfire Construction	N/A	N/A
Acoustic	N/A	N/A
Thermal	N/A	N/A

FIXING

Characteristic
Maximum Span (Joist Spacing)	N/A
DIRECT FIX	N/A
Nail to Timber Flooring	Yes
Screw to Timber Frame	N/A
Screw to Steel Frame	N/A
INDIRECT FIX
Timber Frame	N/A
Steel Frame	N/A
Masonry Frame	N/A
EXPOSED FASTENERS
Screw	N/A
Rivet	N/A
Nail	N/A
CONCEALED FASTENERS
Clip	N/A
Countersunk Screw/Nail	N/A
Adhesive, Split Batten, etc.	N/A
Hidden by Overlapping Panel	N/A
Flush Jointed (Taped)	N/A
