Edge

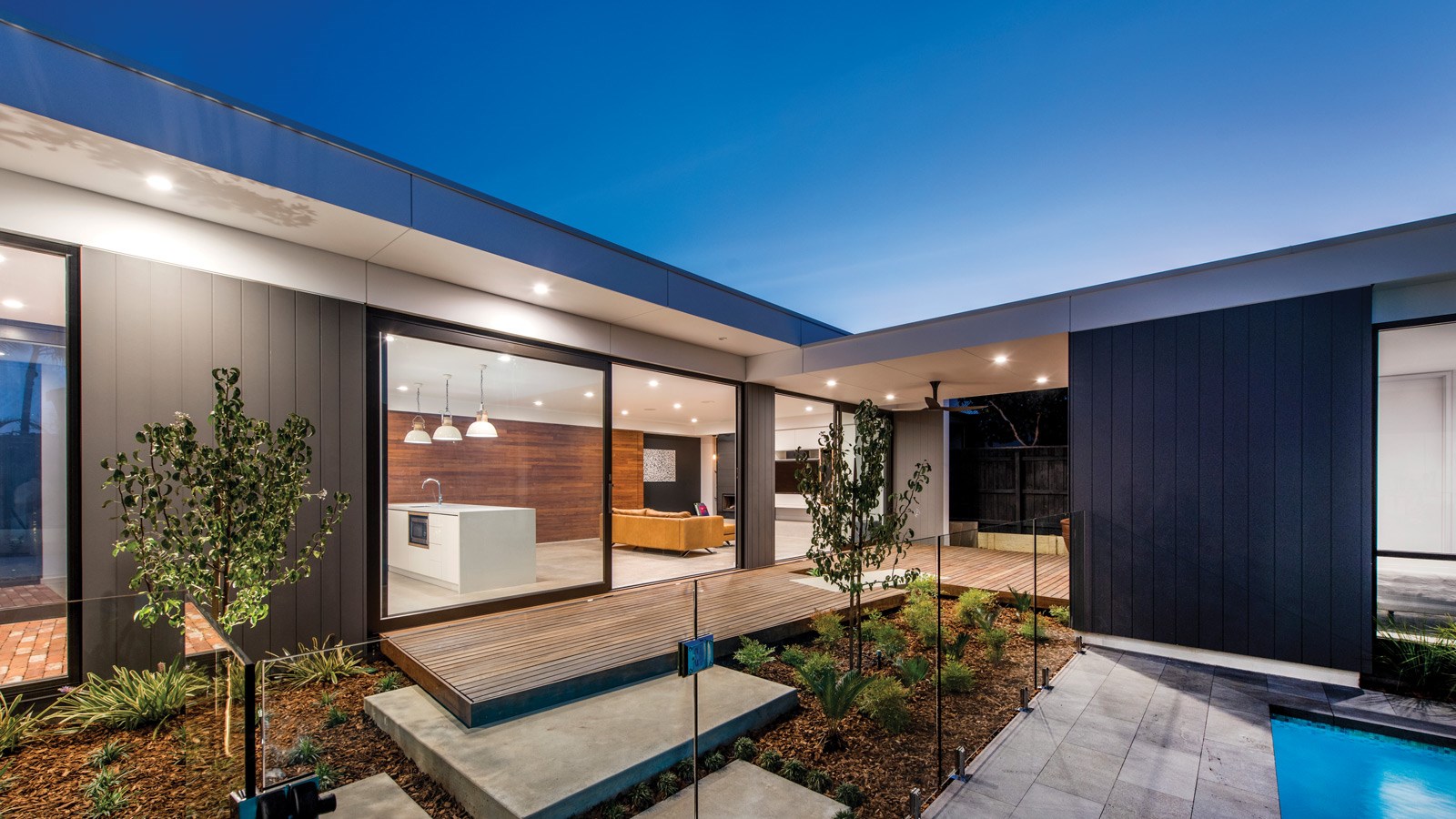

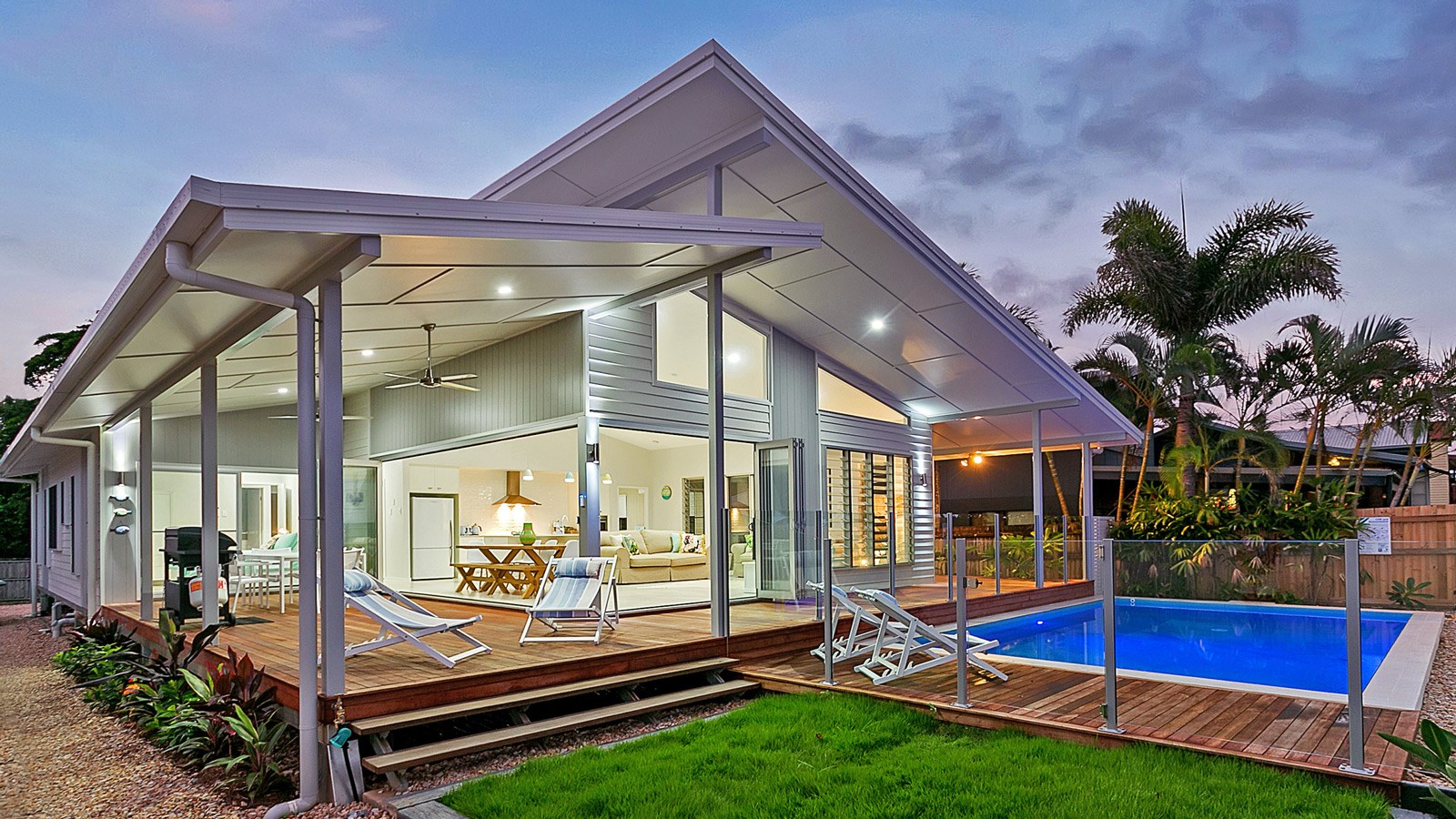

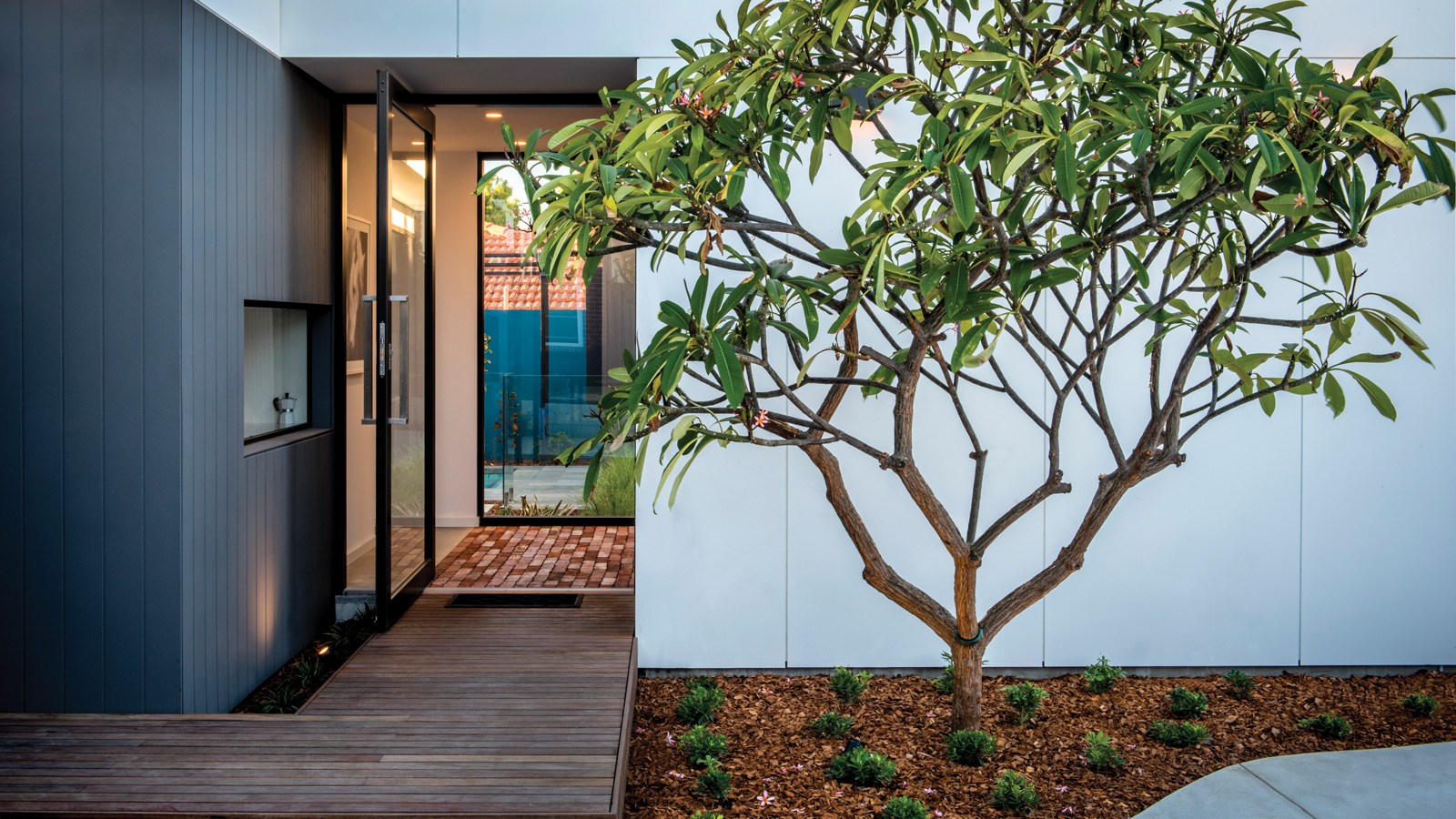

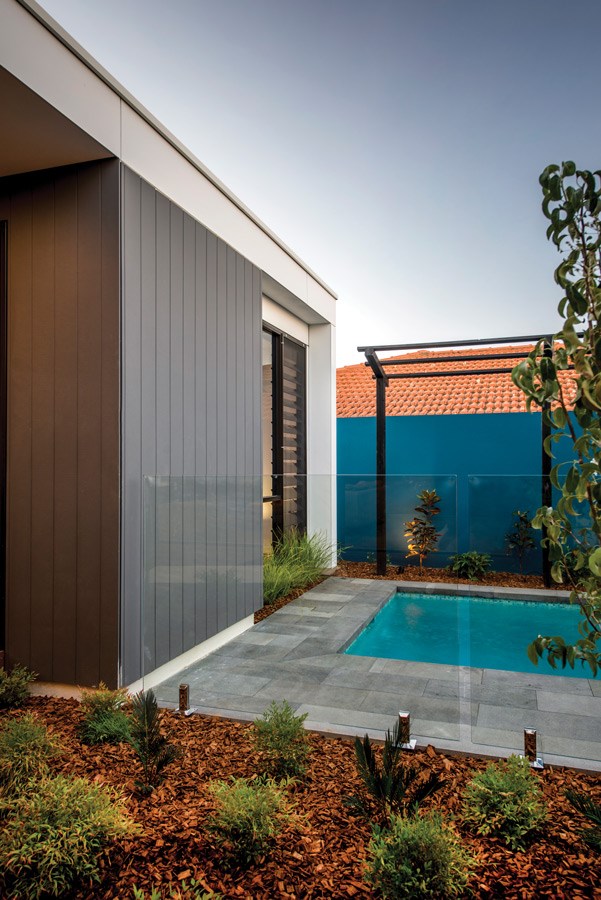

A hidden gem in the Cemintel portfolio, this pre-primed, external, vertical cladding, with sharp grooves, allows for the creative pairing of this product with the whole Cemintel range.

The grooves are very sharp and clean and ready to paint. The panels provide for speedy construction and the direct fix method saves space because it doesn’t come out from the wall. The ship-lap joint runs along the long edge, allowing for frame movement and avoids joint cracking. It can also be installed on a cavity system.

Category: Facades & Cladding
Store availability: Cabramatta, Katoomba
Online Enquiry

Features

  • Pre-primed, external, vertical cladding, with sharp grooves
  • Grooves are very sharp, clean and ready to paint
  • Ship-lap joint runs along the long edge, allowing for frame movement and avoiding joint cracking
  • Allows for the creative pairing with the whole Cemintel range
  • Speedy construction with a direct fix method that saves space
  • Can also be installed on a cavity system

APPLICATIONS

Result
Applications Façades & Cladding, Internal Linings
Type of Building Structure Residential Housing Buildings within the scope of AS4055
Wet Areas No

PANEL – DIMENSIONAL & GEOMETRICAL CHARACTERISTICS

Dimensional/Geometrical Characteristic Specification Manufacturing Tolerance Relevant Standard
Panel Dimensions 1200mmW x 2450mmL x 9mmD
1200mmW x 2750mmL x 9mmD
1200mmW x 3000mmL x 9mmD
Width +0 -3 mm
Length +0 -3 mm
Thickness +0.5 -0 mm
Profile Shiplap
Perpendicularity/squareness of edges 2mm/linear meter
Weight (typical) 12.0kg/m2
Layout Options Vertical
Jointing Concealed

PANEL – STRENGTH & MOISTURE RELATED PROPERTIES

Physical Property Result Relevant Standard
Modulus of Rupture (Wet) > 9 MPa AS2908.2
Modulus of Elasticity (Wet) 3-5 GPa AS2908.2
Density (Oven Dry) 1280 kg/m3 AS2908.2
Water Vapor Diffusion Not Required Not Required
Water Tightness (24hrs) No water droplet AS2908.2
Water Absorption (Saturated – 48hrs) 30 wt% ASTM C 1186
Moisture Content (EMC) 7 wt% ASTM C 1186
Moisture Movement 0.05% ASTM C 1186

PANEL – OTHER DURABILITY/WEATHER RESISTANCE INDICATORS

Test Result Relevant Standard
Heat Rain PASSED (25 Cycles) AS2908.2
Freeze Thaw PASSED (50 Cycles) AS2908.2
Warm Water Resistance PASSED (56 days) AS2908.2
Soak Dry PASSED (25 Cycles) AS2908.2

PANEL – FINISH CHARACTERISTICS

Characteristic Result Relevant Standard
Finish Preprimed
Coating Type Sealer Type: Pigmented Sealer On Face
Colour Bodied No
Paint Type
UV Resistance N/A N/A
Formaldehyde Emission Rate N/A N/A
VOC Emission Rate N/A N/A
Spectral Reflectivity Values Solar Reflectance % Solar Absorption % Basix Colour Relevant Standard
Edge Cladding® N/A

PANEL – FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES

Characteristic Result Relevant Standard
FIRE RESISTANCE
Combustibility Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2016 BCA Vol 1 Amendment 1 Clause C1.9 (2015 BCA Vol Clause C1.12)
Fire Hazard Properties Group 1 Av Specific Extinction Area <250 AS/NZ 3837
Classification 1 AS/NZ 3837
Surface Burning Characteristics Ignitability =0, Flame Propagation =0, Heat Release =0, Smoke Release=1 AS1530.3
THERMAL CONDUCTIVITY
Thermal Conductivity (λ-Factor) ≈ 0.2535 W/m.K
Thermal Expansion Co-efficient 0.005-0.01mm/mK N/A
ACOUSTIC VALUE
Sound reduction (depends on construction) N/A N/A

SYSTEM SOLUTIONS

Characteristic Result Relevant Standard
Within Scope of AS4055? Yes
Wind Loading – Residential housing buildings within the scope of AS4055 N1, N2, N3, N4, N5, N6, C1, C2, C3, C4
Weatherproofing Suitable for all building classes as set out in the BCA (ie 1&10, 2-9) N/A
Cyclonic Conditions N/A N/A
Fire Resistance Limits (FRLs) Up to 60/60/60 90/90/90 Refer to Gyprock® The Red Book™
Bushfire Construction BAL 29 (Construction for Bushfire Attack Level 29 for an external wall) AS 3959-8
Acoustic Acoustic solutions of up to RW/RW+CTR 49/39 are detailed Refer to Gyprock® The Red Book™
Thermal Thermal solutions of up to RT(sum)/RT(win) 3.4/3.8 Refer to Gyprock® The Red Book™

FIXING

Characteristic
Maximum Span (Stud Spacing) Up to 600mm
DIRECT FIX
Nail to Timber Frame Yes
Screw to Timber Frame No
Screw to Steel Frame Yes
INDIRECT FIX
Timber Frame Yes
Steel Frame No
Masonry Frame No
EXPOSED FASTENERS
Screw Yes
Rivet No
Nail Yes
CONCEALED FASTENERS
Clip No
Countersunk Screw/Nail No
Adhesive, Split Batten, etc. No
Hidden by Overlapping Panel No
Flush Jointed (Taped) No

WARRANTY

10 Years
