Shaft Liner

Gyprock Shaft Liner has been developed to offer enhanced safety to building occupants. These heavy duty boards provide high levels of fire and acoustic resistance for lift wells, shafts and stairwells.

Typical Applications

Shaft Liner is predominantly specified for the internal barrier lining within Gyprock fire and/or acoustic wall and ceiling systems such as Party Wall Systems.

Typical applications include:

  • Intertenancy walls and party walls
  • Multi-residential unit ceilings
  • Stairwells
  • Lift wells
  • Service shafts
Category: Party Wall
Store availability: Cabramatta, Katoomba
Online Enquiry

Shaft Liner’s glass fibre-reinforced core is encased in a heavy duty linerboard. This enables it to resist fire and make it ideal for use as part of a fire rated wall or ceiling system.These panels also offer exceptional acoustic insulation properties and are used in Gyprock commercial wall and ceiling systems where a high fire rating or high acoustic performance is specified.

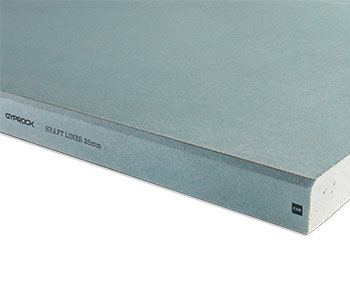

Gyprock Shaft Liner can be identified by its blue coloured face paper.

Product Options

Gyprock Shaft Liner is available in the following sizes:

Thickness 25mm
Widths 600mm
Lengths 3000mm
Edge Profiles Square Edge for applications not requiring jointing

Product Manufacture

Gyprock Shaft Liner is manufactured by CSR Gyprock in Australia to stringent product specifications.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.

Manufacturing Tolerances

Nominal Thickness 25mm ± 0.5mm
Nominal Widths 600mm ± 3mm
Nominal Lengths From 3000mm and 3600 ± 5mm
Squareness Cut ends ± 3mm in the width of the board

Physical Properties

Nominal Board Weight* 19.8kg/m2
Thermal Performance:
0.14 m2K/W
Fire Hazard: assessed to AS/NZS3837 cone calorimeter test Average Specific Extinction Area (ASEA)
Group Number 1
Report Reference WFRA 45759
Combustibility In accordance with BCA Clause C1.12, Gyprock Shaft Liner may be used wherever a non-combustible material is required by the Code.
Total Recycled Content 9.3%

*Subject to reasonable manufacturing variance.
