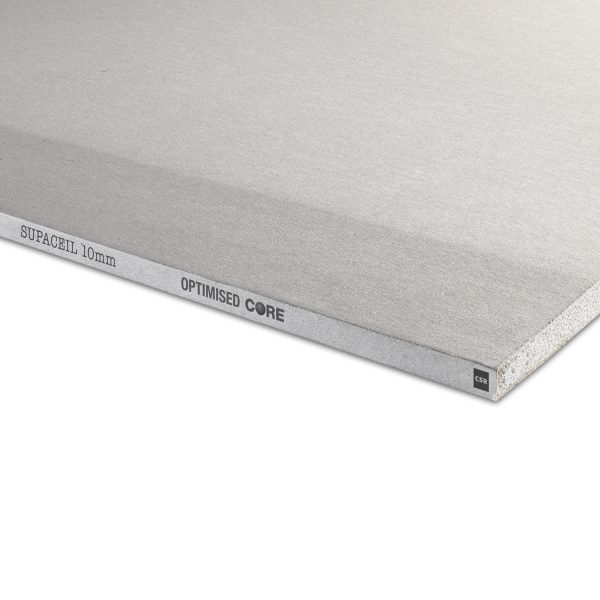

Supaceil™
Head and shoulders above the rest, Gyprock Supaceil sets the standard for plasterboard in ceilings. This lightweight 10mm thick plasterboard features Optimised Core technology to provide significantly improved strength, handling and board performance.
Typical Applications
Gyprock Supaceil is typically used as a superior ceiling lining option in residential applications and can be used to span up to 600mm joist centres. It is most suitable for areas of the home where exposure to moisture is not a concern such as bedrooms, living areas and entranceways.
Gyprock Supaceil was the first product in Australia manufactured with Optimised Core technology which provides an advanced performance-to-weight ratio, meaning greater breaking strength in a substantially lighter board that continues to exceed the performance requirements of Australian Standard AS/NZS 2588. This improved strength ensures it will stay flatter, even when installed on ceiling joists with 600mm centres. There is also less chance of fixings pulling through the board when extra pressure from above is applied such as heavy ceiling insulation.
The board’s thicker face paper produces a crisper score and snap experience with cleaner cuts and squarer edges.
Optimised Core™ technology
Plasterboard manufactured with Optimised Core technology has an advanced performance-to-weight ratio, meaning greater breaking strength in a substantially lighter board.
Stronger – more robust with better breaking strength for improved handling and installed performance
Lighter – easier to lift for better sheet manoeuvrability and improved flex
Significantly improved score and snap – for crisp edges and cleaner cuts
Product Options
Gyprock Supaceil is available in the following sizes:
| Thickness | 10mm | |
| Widths | 1200mm 1350mm |
|
| Lengths | 2400mm 3000mm 3600mm 4200mm 4800mm |
|
| Edge Profiles | Recessed Edge for regular jointing |
Product Manufacture
Gyprock Supaceil is manufactured by CSR Gyprock in Australia to stringent product specifications.
Product Handling
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Health and Safety
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Manufacturing Tolerances
| Nominal Thickness | 10mm ± 0.4mm |
| Nominal Widths | 1200mm and 1350mm ± 3mm |
| Nominal Lengths | From 2400mm to 6000mm ± 5mm, typically in 300mm increments |
| Squareness | Cut ends ± 3mm in the width of the board |
Physical Properties
| Nominal Board Weight* | 6.1kg/m2, 6.5kg/m2 in WA |
| Thermal Performance: R-Value |
0.04 – 0.05 m2K/W |
| Fire Hazard: assessed to AS/NZS3837 cone calorimeter test | Average Specific Extinction Area (ASEA) <250 m2/kg Group Number 1 Report Reference WFRA 45759 |
| Combustibility | In accordance with BCA Clause C1.12, Gyprock Supaceil may be used wherever a non-combustible material is required by the Code. |
| Total Recycled Content | 6.2% |
*Subject to reasonable manufacturing variance.
Resources
Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.
