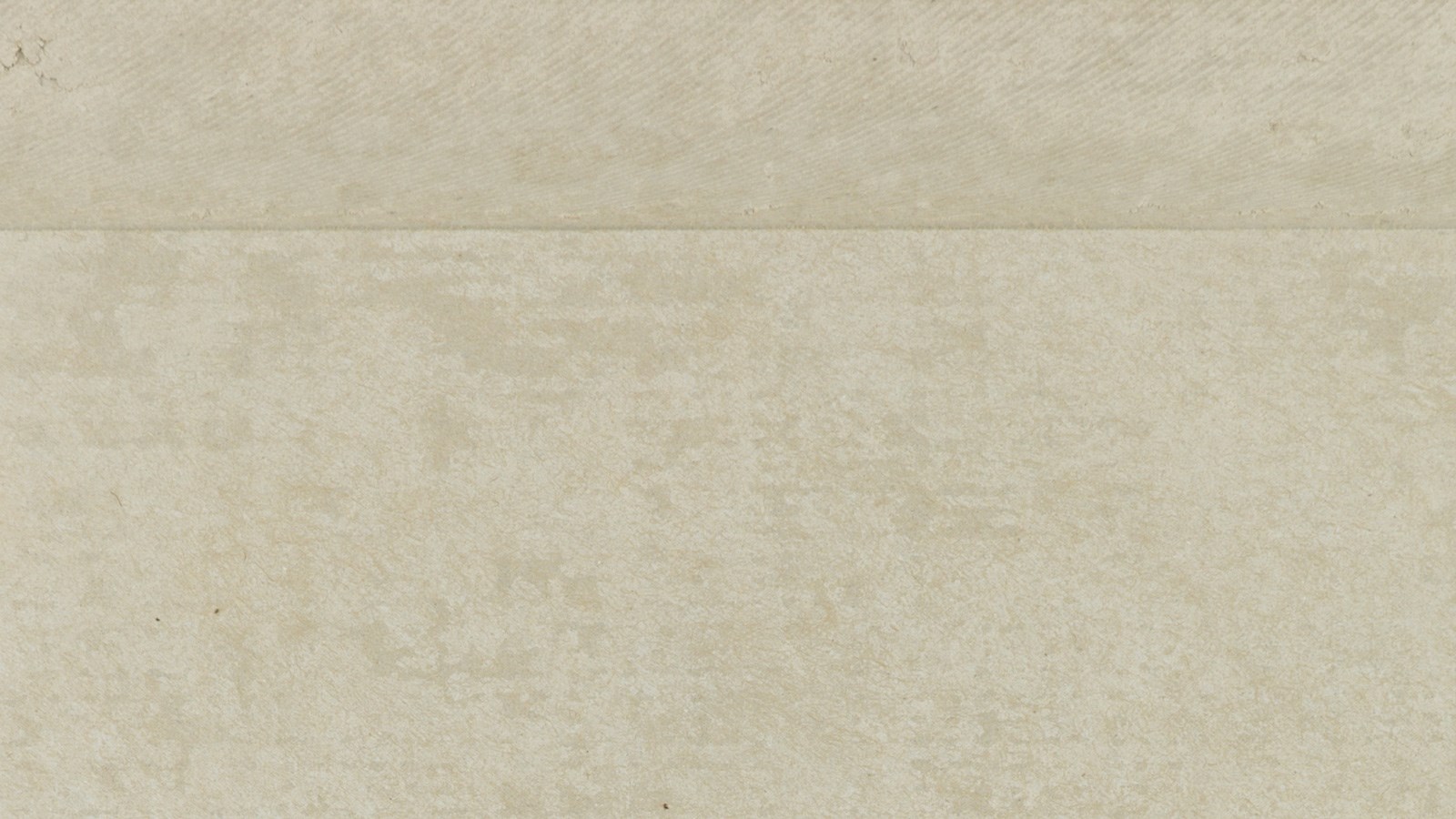

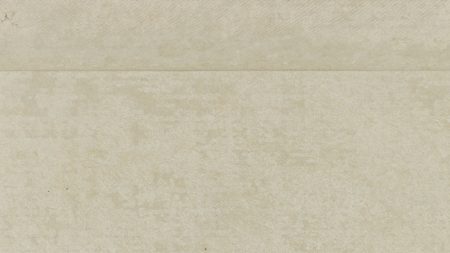

Ceminseal Wallboard Recessed Edge

CeminSeal® Wallboard Recessed Edge is a superior wet area internal lining and tile substrate product designed and tested for compliance and peace of mind.

Do it once… do it properly.
CeminSeal® Wallboard is manufactured in Australia and uses Cemintel’s unique CeminSeal® water block technology, repelling water, increasing paint adhesion and aiding moisture management in the places that can’t be seen. It is applied to the face of the panel and has been tested to show higher water resistance when compared to wet area plasterboard and other products on the market. The smooth finish of CeminSeal® Wallboard means less work for fixing and setting and provides an extremely smooth paint surface when not tiled over.

Category: Walls
Store availability: Cabramatta, Katoomba
Online Enquiry

CeminSeal® Wallboard is manufactured in Australia and uses Cemintel’s unique CeminSeal® water block technology, repelling water, increasing paint adhesion and aiding moisture management in the places that can’t be seen. It is applied to the face of the panel and has been tested to show higher water resistance when compared to wet area plasterboard and other products on the market. The smooth finish of CeminSeal Wallboard means less work for fixing and setting and provides an extremely smooth paint surface when not tiled over.

APPLICATIONS

Result
Applications Internal Linings, Eaves & Soffits (Express jointed only)
Type of Building Structure Residential Housing Buildings within the scope of AS4055, Commercial & Other
Wet Areas Yes

PANEL – DIMENSIONAL & GEOMETRICAL CHARACTERISTICS

Dimensional/Geometrical Characteristic Specification Manufacturing Tolerance Relevant Standard
Panel Dimensions 900mmW x 3000mmL x 6mmD
1200mmW x 1800mmL x 6mmD
1200mmW x 2400mmL x 6mmD
1200mmW x 2700mmL x 6mmD
1200mmW x 3000mmL x 6mmD
1200mmW x 3600mmL x 6mmD
1200mmW x 4200mmL x 6mmD
1350mmW x 2400mmL x 6mmD
1350mmW x 3000mmL x 6mmD
1350mmW x 3600mmL x 6mmD
1350mmW x 4200mmL x 6mmD
1200mmW x 2400mmL x 9mmD
1200mmW x 2700mmL x 9mmD
1200mmW x 3000mmL x 9mmD
1200mmW x 3000mmL x 12mmD
Width +0 -3mm
Length +0 – 4mm
Thickness +0.5 -0mm
Profile Recessed Edge
Perpendicularity/squareness of edges 2mm/linear meter
Weight (typical) 6mm = 9.4kg/m2, 9mm = 14kg/m2
Layout Options Horizontal
Jointing Butt Jointed, Concealed, Expressed (ceilings only)

PANEL – STRENGTH & MOISTURE RELATED PROPERTIES

Physical Property Result Relevant Standard
Modulus of Rupture (Wet) > 8 MPa AS2908.2
Modulus of Elasticity (Wet) 3-5 GPa AS2908.2
Density (Oven Dry) 1350 kg/m3 AS2908.2
Water Vapor Diffusion Not Required Not Required
Water Tightness (24hrs) No water droplet AS2908.2
Water Absorption (Saturated – 48hrs) 30 wt% ASTM C 1186
Moisture Content (EMC) 7 Wt % ASTM C 1186
Moisture Movement 0.0006 ASTM C 1186

PANEL – OTHER DURABILITY/WEATHER RESISTANCE INDICATORS

Test Result Relevant Standard
Heat Rain PASSED (25 Cycles) AS2908.2
Freeze Thaw PASSED (50 Cycles) AS2908.2
Warm Water Resistance PASSED (56 days) AS2908.2
Soak Dry PASSED (25 Cycles) AS2908.2

PANEL – FINISH CHARACTERISTICS

Characteristic Result Relevant Standard
Finish Preprimed
Coating Type CeminSeal®
Colour Bodied No
Paint Type
UV Resistance N/A N/A
Formaldehyde Emission Rate Meets Green Building Council Office Design IEQ-14 Requirements for <0.1mg/m2/hr*
*Refers to results obtained for Woodlands Teak
ASTM D5116
VOC Emission Rate Meets Green Building Council Office Design IEQ-14 Requirements for <0.5mg/m2/hr*
*Refers to results obtained for Woodlands Teak
ASTM D5116
Spectral Reflectivity Values Solar Reflectance % Solar Absorption % Basix Colour Relevant Standard
CeminSeal® Wallboard – Recessed Edge N/A

PANEL – FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES

Characteristic Result Relevant Standard
FIRE RESISTANCE
Combustibility Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2016 BCA Vol 1 Amendment 1 Clause C1.9 (2015 BCA Vol Clause C1.12)
Fire Hazard Properties Group 1 Av Specific Extinction Area <250 AS/NZ 3837
Classification 1 AS/NZ 3837
Surface Burning Characteristics Ignitability =0, Flame Propagation =0, Heat Release =0, Smoke Release=1 AS1530.3
THERMAL CONDUCTIVITY
Thermal Conductivity (λ-Factor) ≈ 0.2776 W/m.K.
Thermal Expansion Co-efficient 0.005-0.01mm/mK N/A
ACOUSTIC VALUE
Sound reduction (depends on construction) N/A N/A

SYSTEM SOLUTIONS

Characteristic Result Relevant Standard
Within Scope of AS4055? Yes
Wind Loading – Residential housing buildings within the scope of AS4055 N1, N2, N3, N4, N5, C1, C2, C3
Weatherproofing N/A N/A
Cyclonic Conditions N/A N/A
Fire Resistance Limits (FRLs) N/A N/A
Bushfire Construction BAL 40 (Construction for Bushfire Attack Level 40 for an external wall) AS 3959-8
Acoustic N/A N/A
Thermal N/A N/A

FIXING

Characteristic
Maximum Span (Stud Spacing) Up to 1200mm (internal); Up to 1610mm (external)
DIRECT FIX
Nail to Timber Frame Yes (walls)
Screw to Timber Frame No
Screw to Steel Frame Yes (walls)
INDIRECT FIX
Timber Frame Yes (ceilings)
Steel Frame Yes (ceilings)
Masonry Frame No
EXPOSED FASTENERS
Screw No
Rivet No
Nail No
CONCEALED FASTENERS
Clip No
Countersunk Screw/Nail Yes
Adhesive, Split Batten, etc. Yes
Hidden by Overlapping Panel No
Flush Jointed (Taped) Yes
