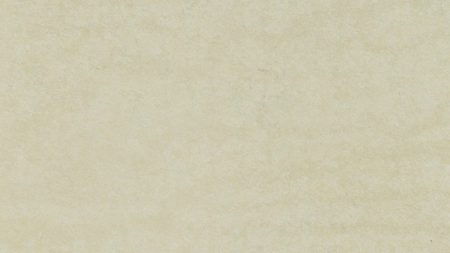

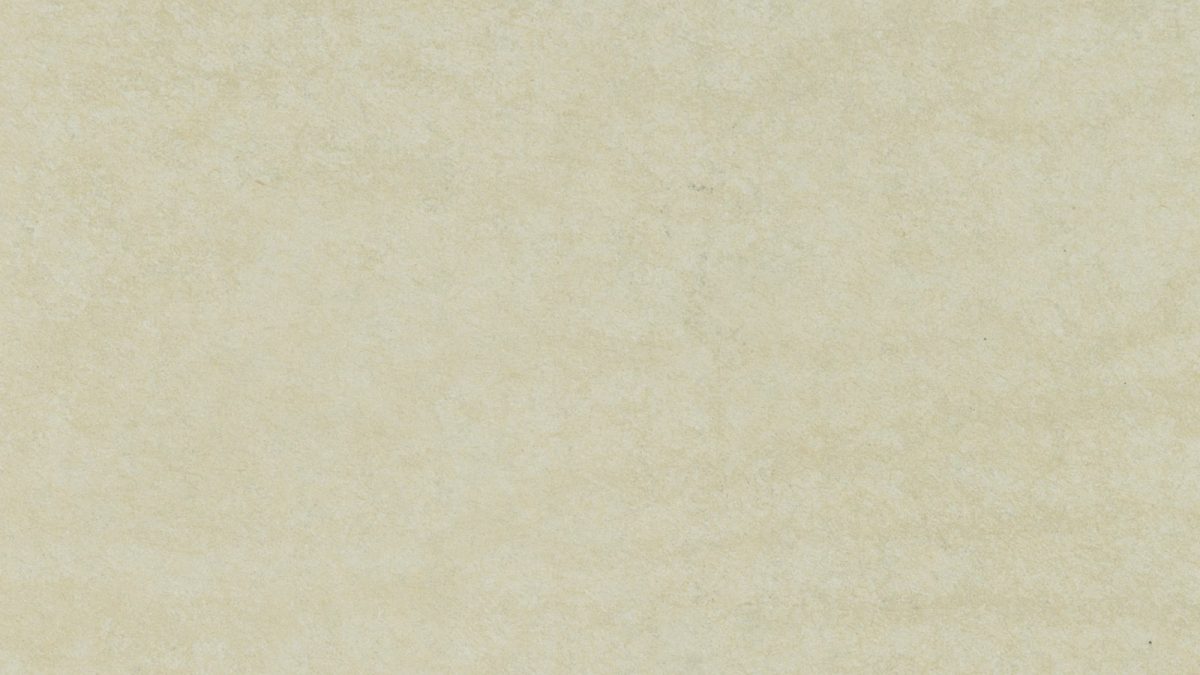

Eaves Lining Sheet

Specifically designed for use in the lining of eaves, Cemintel Eaves Lining Sheet is sized to suite standard eaves widths. Joints may be expressed or covered with H moulds or cover moulds and the sheets should be coated with an exterior paint system for a durable, low maintenance lining.

Joints may be expressed or covered with H moulds or cover moulds and the sheets should be coated with an exterior paint system for a durable, low maintenance lining.

Category: Eaves & Soffits

Store availability: Cabramatta, Katoomba

Online Enquiry

Product Overview
Technical Specifications
Downloads

FEATURES

For use in the lining of eaves
Sized to suite standard eaves widths
Joints may be expressed or covered with H moulds or cover moulds
Sheets should be coated with an exterior paint system for a durable, low maintenance lining

APPLICATIONS

	Result
Applications	Eaves & Soffits
Type of Building Structure	Residential Housing Buildings within the scope of AS4055
Wet Areas	No

PANEL – DIMENSIONAL & GEOMETRICAL CHARACTERISTICS

Dimensional/Geometrical Characteristic	Specification	Manufacturing Tolerance
Panel Dimensions	450mmW x 2400mmL x 4.5mmD 600mmW x 2400mmL x 4.5mmD 750mmW x 2400mmL x 4.5mmD	Width +0 -3 mm Length +0 -4 mm Thickness +0.5 -0 mm
Profile	Square Edge
Perpendicularity/squareness of edges	2mm/linear meter
Weight (typical)	7.3kg/m2
Layout Options	N/A
Jointing	Cover Strip

PANEL – STRENGTH & MOISTURE RELATED PROPERTIES

Physical Property	Result	Relevant Standard
Modulus of Rupture (Wet)	> 9 MPa	AS2908.2
Modulus of Elasticity (Wet)	3-5 GPa	AS2908.2
Density (Oven Dry)	1350 kg/m3	AS2908.2
Water Vapor Diffusion	Not Required	Not Required
Water Tightness (24hrs)	No water droplet	AS2908.2
Water Absorption (Saturated – 48hrs)	30 wt%	ASTM C 1186
Moisture Content (EMC)	7 Wt %	ASTM C 1186
Moisture Movement	0.06%	ASTM C 1186

PANEL – OTHER DURABILITY/WEATHER RESISTANCE INDICATORS

Test	Result	Relevant Standard
Heat Rain	PASSED (25 Cycles)	AS2908.2
Freeze Thaw	PASSED (50 Cycles)	AS2908.2
Warm Water Resistance	PASSED (56 days)	AS2908.2
Soak Dry	PASSED (25 Cycles)	AS2908.2

PANEL – FINISH CHARACTERISTICS

Characteristic	Result	Relevant Standard
Finish	Unprimed
Coating Type
Colour Bodied	No
Paint Type
UV Resistance	N/A	N/A
Formaldehyde Emission Rate	N/A	N/A
VOC Emission Rate	N/A	N/A

Spectral Reflectivity Values	Solar Reflectance %	Solar Absorption %	Basix Colour	Relevant Standard
Eaves Lining Sheet				N/A

PANEL – FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES

Characteristic	Result	Relevant Standard
FIRE RESISTANCE
Combustibility	Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2016 BCA Vol 1 Amendment 1 Clause C1.9 (2015 BCA Vol Clause C1.12)
Fire Hazard Properties	Group 1 Av Specific Extinction Area <250	AS/NZ 3837
Classification	1	AS/NZ 3837
Surface Burning Characteristics	Ignitability =0, Flame Propagation =0, Heat Release =0, Smoke Release=1	AS1530.3
THERMAL CONDUCTIVITY
Thermal Conductivity (λ-Factor)	≈ 0.2704 W/m.K.
Thermal Expansion Co-efficient	0.005-0.01mm/mK	N/A
ACOUSTIC VALUE
Sound reduction (depends on construction)	N/A	N/A

SYSTEM SOLUTIONS

Characteristic	Result	Relevant Standard
Within Scope of AS4055?	Yes
Wind Loading – Residential housing buildings within the scope of AS4055	N1, N2, N3
Weatherproofing	N/A	N/A
Cyclonic Conditions	N/A	N/A
Fire Resistance Limits (FRLs)	N/A	N/A
Bushfire Construction	BAL 29 (Construction for Bushfire Attack Level 29 for an external wall)	AS 3959-8
Acoustic	N/A	N/A
Thermal	N/A	N/A

FIXING

Characteristic
Maximum Span (Stud Spacing)	Up to 600mm
DIRECT FIX
Nail to Timber Frame	Yes
Screw to Timber Frame	Option for ceilings/eaves
Screw to Steel Frame	No
INDIRECT FIX
Timber Frame	No
Steel Frame	No
Masonry Frame	No
EXPOSED FASTENERS
Screw	Yes
Rivet	No
Nail	Yes
CONCEALED FASTENERS
Clip	No
Countersunk Screw/Nail	No
Adhesive, Split Batten, etc.	No
Hidden by Overlapping Panel	No
Flush Jointed (Taped)	No
