Repair Panels

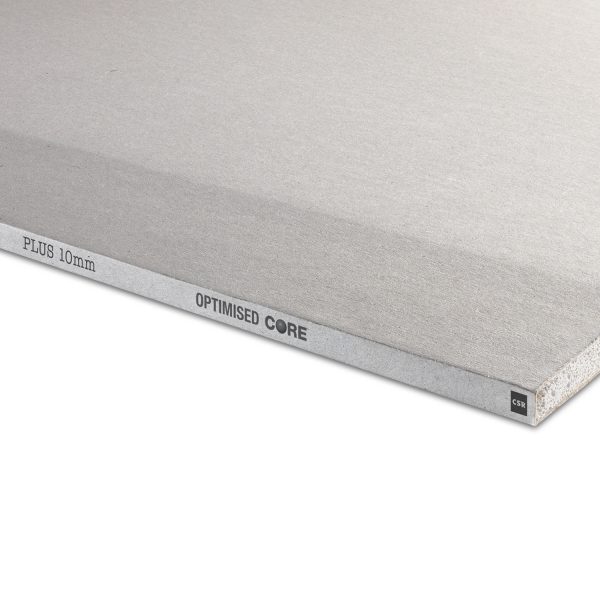

Cut from Gyprock Plus 10mm plasterboard panels, Repair Panels are strong and light making them easy to handle and extremely durable. Gyprock Repair Panels are conveniently sized pieces of plasterboard used for repairing holes and other damage in plasterboard walls and ceilings.
Typical Applications
Gyprock Repair Panels can be used to repair holes and damage such as holes, dents and scrapes in residential walls and ceilings where there are no specific fire, acoustic or moisture resistance requirements.
Gyprock Repair Panels are available in two sizes:
- Repair Panel – available as a 1200mm long by 900mm wide panel with the shorter edges recessed for flush jointing.
- Mini Repair Panel – available as a 530mm wide by 530mm long panel and ideal for smaller wall and ceiling repairs. These panels are suitable for use in 600mm x 600mm access frame kits.
Use with DIY Compounds
Doing the repair yourself? Use Gyprock DIY compounds with your Gyprock Repair Panels.
The Gyprock DIY range of compounds is available for the easy installation and repairs of Gyprock plasterboard and cornice. These products are designed with the needs of a home handyman and DIY enthusiast in mind with smaller, convenient pack sizes and product formulations that streamline the installation process – all with easy to follow instructions on the packs.
Product Options
Gyprock Repair Panels are available in the following sizes:
Repair Panel
| Thickness | 10mm |
| Width | 900mm |
| Length | 1200mm |
Mini Repair Panel
| Thickness | 10mm |
| Width | 530mm |
| Length | 530mm |
Stockholdings may vary. For product availability and to place an order, contact your nearest supplier.
Product Manufacture
Gyprock Repair Panels are manufactured by CSR Gyprock in Australia to stringent product specifications.
Product Handling
Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Health and Safety
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Manufacturing Tolerances
| Nominal Thickness | 10mm ± 0.5mm |
| Nominal Widths | 1200mm ± 3mm |
| Nominal Lengths | 900mm ± 5mm |
| Squareness | Cut ends ± 3mm in the width of the board |
Physical Properties
| Nominal Board Weight* | 5.7kg/m2 |
| Thermal Performance: R-Value |
0.07 m2K/W |
| Fire Hazard: assessed to AS/NZS3837 cone calorimeter test | Average Specific Extinction Area (ASEA) <250m2/kg Group Number 1 Report Reference WFRA 45759 |
| Combustibility | In accordance with BCA Clause C1.12, Gyprock Repair Panel may be used wherever a non-combustible material is required by the Code. |
*Subject to reasonable manufacturing variance.
Installing to Standards
AS/NZS2589: Gypsum linings – Application and Finishing outlines the procedures for the installation and finishing of Gyprock Repair Panels in conjunction with additional details contained in Gyprock Technical Literature.
Resources
Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.
